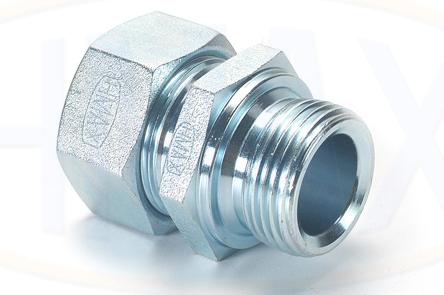

MALE STUD FITTING
Overview
Saibaba Engineering Works’ Fittinggs are designed to efficiently transfer fluids in industrial applications. Built with high-quality materials, these pipes offer flexibility, durability, and resistance to pressure, making them ideal for both low and high-pressure fluid conveyance systems.
- DISCRIPTION:Straight Male Stud Coupling c/w 1xNut & 1xFerrule
- COUPLING TYPE:ISO 8434-1 / DIN 2353 24° Compression Fittings
- BODY:Carbon Steel
- NUT: Cold Forged Steel 15C8/SA105
- FERRULE: Hardened Steel EN-1A
- PLATING:Zinc Plating White or Golden
- SERIES: L-Light Series / S-Heavy Series
- PRESSURE:Light – 100 to 250 bar / Heavy – 250 to 630 bar
- TUBE OD: Light – 6 od to 42 od / Heavy – 6 od to 38 od
- END:1/8″ to 1.1/2″ BSP
