ID |
OD |
Working Pressure |
Bursting Pressure |
Bending Radius |
Max. Length |
|||
|---|---|---|---|---|---|---|---|---|
| MM | INCH | MM | BAR | PSI | BAR | PSI | BAR | MTR |
| 31 | 1¼ | 44 | 10 | 150 | 30 | 450 | 190 | 40 |
| 38 | 1½ | 51 | 10 | 150 | 30 | 450 | 230 | 40 |
| 50 | 2 | 64 | 10 | 150 | 30 | 450 | 310 | 40 |
| 63 | 2½ | 78 | 10 | 150 | 30 | 450 | 380 | 40 |
| 75 | 3 | 91 | 10 | 150 | 30 | 450 | 460 | 40 |
| 100 | 4 | 119 | 10 | 150 | 30 | 450 | 610 | 40 |
| 125 | 5 | 146 | 10 | 150 | 30 | 450 | 760 | 40 |
| 150 | 6 | 173 | 10 | 150 | 30 | 450 | 920 | 40 |

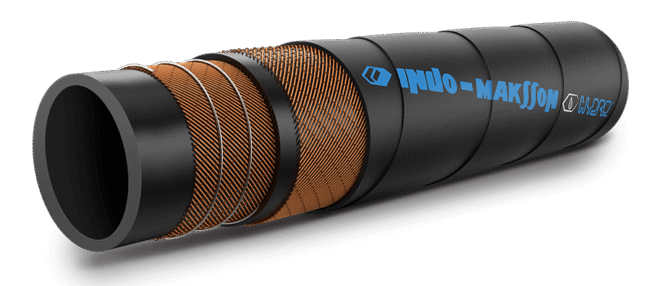

Water S & D hoses
Overview
Saibaba Engineering Works’ Hose Pipes are designed to efficiently transfer fluids in industrial applications. Built with high-quality materials, these pipes offer flexibility, durability, and resistance to pressure, making them ideal for both low and high-pressure fluid conveyance systems.
- TUBE: Specially Compounded Synthetic Rubber, Black
- REINFORCEMENT: High Strength Synthetic Plies with Helix Wire
- COVER: Black synthetic rubber cover TEMP RANGE: -40°C to +70°C Approx
- APPLICATIONS: For suction and discharge of water and non corrosive inert fluid, waste water and sewerage etc.
- PROPERTIES: Seamless | Uniform Thickness | Very Strong
- APPLICABLE STANDARDS: IS : 3549
- STANDARD COLOUR: Inner Tube – Black | Outer Cover – Black
